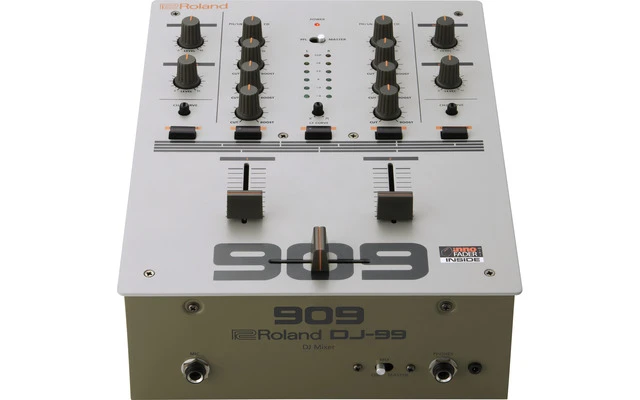

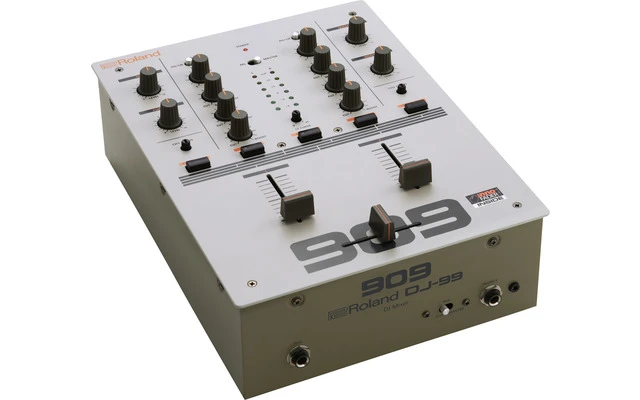

Roland DJ-99

Especificaciones técnicas

• Nominal Input Level (OUTPUT MASTER 0 dBu)
  • CH1, CH2 CD (L, R): -13 dBu
  • CH1, CH2 LN (L, R): -17 dBu
  • CH1, CH2 PH (L, R): -61 dBu
  • CH1, CH2 DVS RETURN (L, R): -13 dBu
  • MIC IN: -40 dBu
• Maximum Input Level
  • CH1, CH2 CD (L, R): 6 Vrms
  • CH1, CH2 LN (L, R): 6 Vrms
  • CH1, CH2 PH (L, R): 0.04 Vrms
  • CH1, CH2 DVS RETURN (L, R): 6 Vrms
  • MIC IN: 0.6 Vrms
• Maximum Output Level (1 kHz, typ.)
  • OUTPUT MASTER (L, R): +15 dBu
  • OUTPUT BOOTH (L, R): +15 dBu
  • PHONES: 31 mW
• Recommended Load Impedance
• PHONES: 32 ohms
• Frequency Response
  • CH1, CH2 CD, LN, DVS RETURN: 20 Hz–20 kHz (+1/-2 dB)
  • MIC IN: 20 Hz–20 kHz (+1/-3 dB)
• Noise Level
  • CH1, CH2 LN (L, R)–>OUTPUT MASTER: 0.6 mVrms or less
  • CH1, CH2 PH (L, R)–>OUTPUT MASTER: 6 mVrms or less
  • * TRIM level: center, 1 k ohms terminated, MASTER level: max, IHF-A, typ.
• Distortion
  • CH1, CH2 CD (L, R): 0.2 % or less
  • CH1, CH2 LN (L, R): 0.2 % or less
• Channel EQ (typ.)
  • HI: 10 kHz +12 dB– -12 dB
  • MID: 980 Hz +12 dB– -28 dB
  • LOW: 100 Hz +12 dB– -28 dB

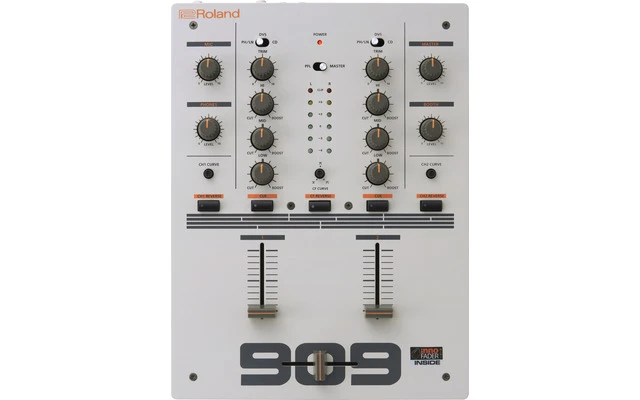

• Controller
  • CH1, CH2 Input selectors
  • CH1, CH2 MIC level knobs
  • CH1, CH2 TRIM level knobs
  • CH1, CH2 Channel EQ knobs HI
  • CH1, CH2 Channel EQ knobs MID
  • CH1, CH2 Channel EQ knobs LOW
  • CH1, CH2 Channel Fader curve adjustment knobs
  • CH1, CH2 Channel Fader reverse switches
  • CH1, CH2 CUE buttons
  • CH1, CH2 Channel Faders
  • CH1, CH2 LN/PH selectors
  • Crossfader
  • PFL/MASTER selector
  • PHONES level knob
  • MASTER level knob
  • BOOTH level knob
  • Crossfader curve adjustment knob
  • Crossfader reverse switch
  • Headphones Monitoring selecto
• Indicador
  • POWER indicator
  • PFL/MASTER level meter
  • CH1, CH2 Channel Fader reverse indicators
  • CH1, CH2 CUE indicators
  • Crossfader reverse indicator

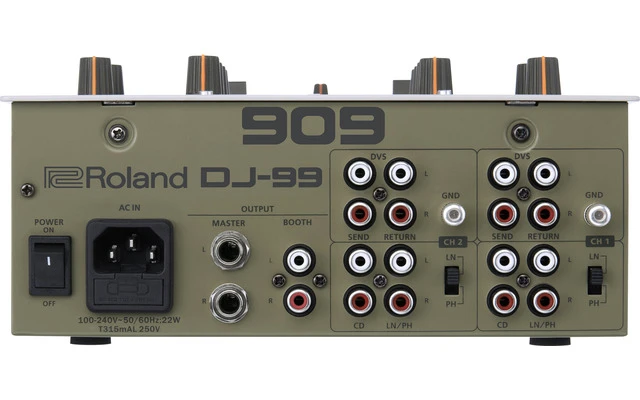

• Conectores
  • MIC input jack: 1/4-inch phone type
  • PHONES output jacks: Stereo 1/4-inch phone type, Stereo miniature phone type
  • CH1, CH2 CD input jacks (L, R): RCA phono type
  • CH1, CH2 LN/PH input jacks (L, R): RCA phono type
  • CH1, CH2 DVS SEND jacks (L, R): RCA phono type
  • CH1, CH2 DVS RETURN jacks (L, R): RCA phono type
  • CH1, CH2 GND terminals
  • MASTER output jacks (L, R): 1/4-inch phone type
  • BOOTH output jacks (L, R): RCA phono type
  • POWER switch POWER connector Fuse holder
• Consumo
• 22 W
• Fuse Rating T315mAL250V (5 ⌀ x 20 mm)
• Accesorios
  • Owner's manual
  • Power cord
  • Extra fader knob: 3 pcs
• Dimensiones y peso
• Ancho 224 mm
• Profundidad 306 mm
• Altura 104 mm
• Peso 3.3 kg
