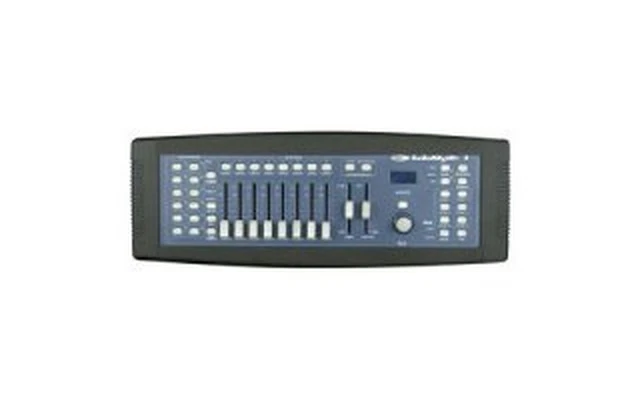

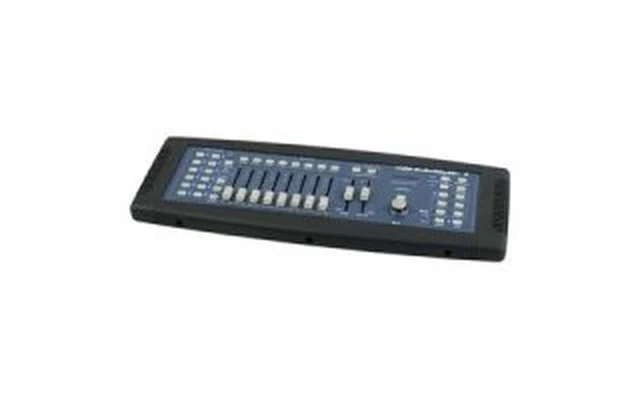

The Scanmaster 3 is a dedicated scancontroller, which is capable to control up to 12 scanners with a maximum of 16 channels each.

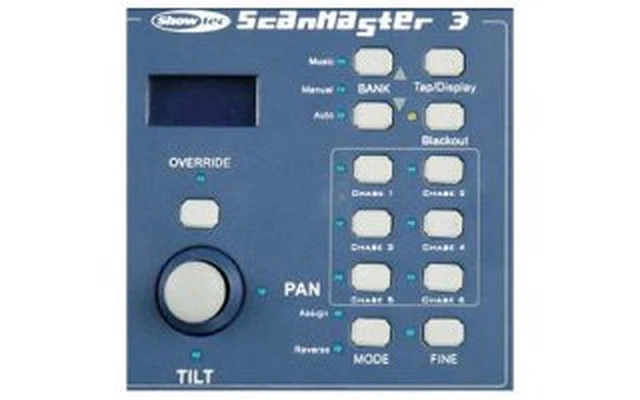

For easy and precise control the Scanmaster 3 is equipped with a joystick, which can be patched to the desired channel. The resolution of the movements is 16 bit. 240 programmable scenes are available and are ready for playback by 30 banks with 8 scenes and 6 complete chase-programs. The manual override button allows you to control any fixture manually during the playback mode of a scene.
Moreover, all chases can be run by the built-in music control. The Scanmaster 3 can also run analog fogmachines by its special fog button, which also indicates if your fogmachine is ready to fog. The special file dump mode enables to send and retrieve data between two Scanmaster 3.
12 x 16 dmx channels (12 fixtures of each 16 channels)
30 banks each composed of 8 programmable scenes
6 programmable chases with max. 240 steps
8 faders for 16 channels
Joystick which can be patched to each channel
Built in microphone for audio trigger
Override mode for manual override in a chase
Output for fogger (Z800 - Z1000)
16 bit resolution
Midi input
Dimensions: 483 x 85 x 133 mm (19"/3U)
Weight: 2,7 kg
