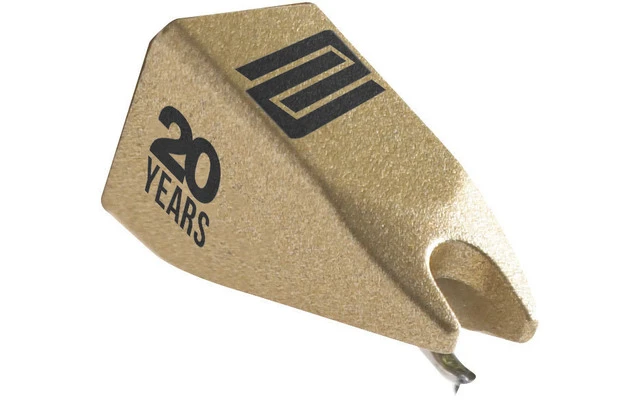

Reloop DJ Stylus Concorde Gold LTD , aguja de repuesto para cápsulas Concorde Gold de Reloop By Ortofon
Especificaciones técnicas
-
Aguja elíptica
-
Fuerza de tracción recomendada: 3,0 g
-
Voltaje de salida: 1000Hz, 5cm/sec: 6 mV
-
Channel balance at 1kHz: 1.5dB
-
Channel separation at 1kHz:23dB
-
Channel separation at 15kHz: 15dB
-
Frequency range at- 3dB: 20-22.000Hz
-
Frequency response: 20-15.000Hz +/- 2dB
-
FIM distorsion and recomended tracking force, DIN 45.542: <1%
-
Tracking ability at 315Hz recomended tracking force: 80m
-
Compliance, dynamic, lateral: 7m/mN
-
Tipo de aguja: Eliptica
-
Stylus tip radius: r/R 13/25m
-
Equivalent stylus tip mass: 0.5mg
-
Tracking force range: 2.0-5.0 g (20-50mN)
-
Tracking force recommended: 3.0g (30mN)
-
Tracking angle: 20º
-
Internal impedance. DC resistance: 750 Ohm
-
Internal inductance: 450 mH
-
Recommended load resistance: 47 kOhm
-
Recommendd load capacitance: 200-600 pf
-
Cartridge weight: 18.5g
