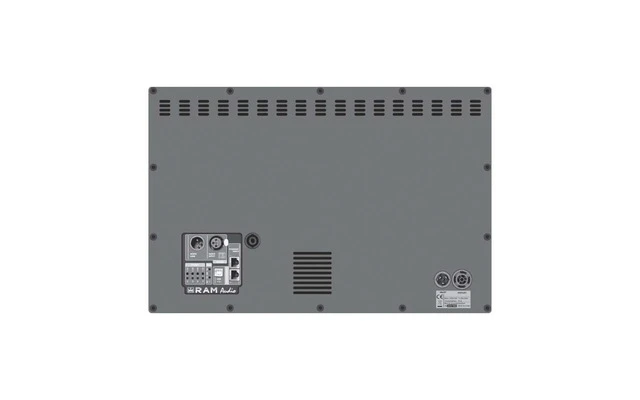

PowerPack Module SB 6K Tri
Referencia: ZX-082038
DSP_PowerPack is the integral solution given by RAM Audio to the needs of many acoustic enclosures manufacturers when it comes to self-powering their products. RAM Audio Class D modules with regulated switching power supply and a high quality FIR DSP, all integrated in a customized chassie to meet the needs of every manufacturer. DSP_PowerPack comprises two series, ASYM and SUB series: ASYM Series are 2 ways modules to power separately mid/low and high frequencies in medium power systems. And SUB Series are designed to be used in low frequencies ways when big powers are requested, up to 6000W @4Ohm.
| Tipo de producto | Amplificadores |
| Tipo | Amplificadores de PA |
| Nivel de salida (1 kHz a 2 ohmios) | 3 x 1500 W |
| Nivel de salida (1 kHz a 4 ohmios) | 1 x 3000 W, 2 x 750 W |
| Nivel de salida (1 kHz a 8 ohmios) | 1 x 1500 W, 2 x 400 W |
| Nivel de salida (1 kHz a 4 ohmios, modo Bridge) | 3000 W |
| Nivel de salida (1 kHz a 8 ohmios, modo Bridge) | 1500 W |
| Distorsión (THD) | <0,05% |
| Factor de amortiguación | > 400 |
| Ganancia (Gain) | 26 / 38 dB |
| Circuitos de protección | Corriente continua, Cortocircuito, ICL (Intelligent Clip Limiting, PMS, RF, Sobrecalentamiento |
| Entradas de línea | 1 |
| Conexiones de entrada de línea | XLR |
| Salidas de línea | 1 |
| Conexiones de salida de línea | XLR |
| Puerto USB | USB tipo B |
| Refrigeración | Ventilador |
| Alimentación eléctrica | 85 - 265 VAC, 50/60 Hz |
| Conexión de alimentación eléctrica | PowerCON TRUE1 IN-OUT |
| Ancho | 467 mm |
| Altura | 297 mm |
| Fondo | 68 mm |
| Peso | 3,4 kg |
