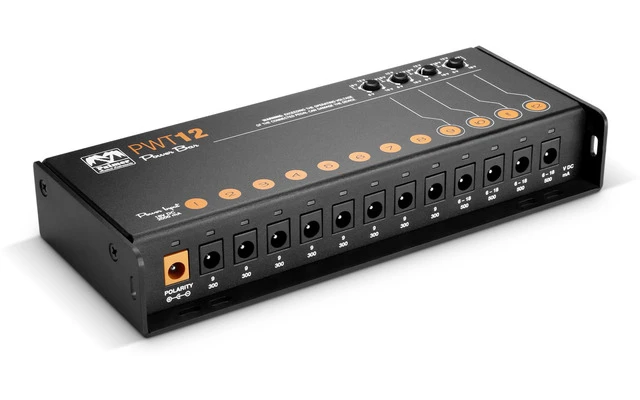

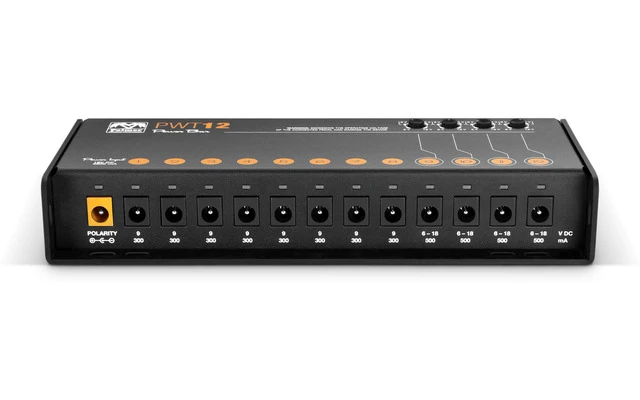

Palmer MI PWT 12 MK 2

Fuente de alimentación universal para 12 pedales

Referencia: ZX-064377

129 169 € IVA INCLUÍDO Ver precios sin IVA
Financiación a 3, 6 y 12 meses (OCULTAR)

  • Fully regulated universal pedalboard power supply
  • 12 standard centre negative outlets with 2,000 mA output total
  • 8 x 9 V outlets (300 mA each)
  • 4 variable voltage outlets 9 to 18 V (500 mA each)
  • Short circuit and overload protection for each outlet
  • DC cables, Y-cable and mains adapter included

The PWT 12 is a universal pedalboard power supply with huge 2,000 mA output capacity and 12 isolated outletts with standard centre negative polarity. Four outlets are variable from 9 to 18 volts, and with the included Y-cable, two can be combined to a single outlet delivering a maximum of 36 volts. In addition, the variable outputs can be used to simulate the voltage sag of worn batteries. Featuring short circuit and overload protection, the PWT 12 is fully regulated to deliver constant voltage. The unit sports a power on LED, bi-colour outlet status LEDs and comes with a set of DC cables and dedicated mains adapter. The PWT 12 is the ideal choice for power-hungry pedals or 9 volt effects that can be run on higher DC currents for more dynamics and headroom.

Tipo de productoSistemas de suministro de energía
Tensión de entrada100 - 250 V
Número de salidas12
Conectores de salida2,1 x 5,5 mm
Tensión de salida12 V , 18 V , 9 V
Corriente de salida máx.2000 mA
Salidas aisladas
PolaridadNegativa en el contacto central
Longitud del cable25 - 50 cm
Indicaciónfallo , Power
Controlesselector de tensión de salida
Ancho193 mm
Fondo70 mm
Altura30 mm
Peso0,4 kg
Característicascables suministrados: 12 cables de continua, 2 cable en Y
