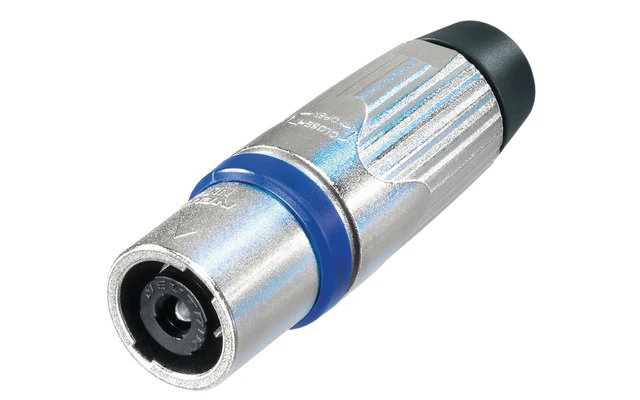

Cable connector, Speakon STX Plata 4P
Referencia: ZX-054796
Extremely rugged metal casing for applications in exposed and tough surroundings Thanks to the sealing arrangements, splash waterproof IP 54 (in the plugged in condition) High current-carrying capacity
| Carcasa de género | Macho |
|---|---|
| Cable entry | 9...16 mm |
| Cable entry max. | 16 mm |
| Cable entry min. | 9 mm |
| Color | Plata |
| Connector Design | Recto |
| Contacto de resistencia | <2 mOhm |
| Housing Material | Metal |
| Intensidad nominal | 40 A |
| Poles | 4 |
| Rango de temperaturas | -30...+80 °C |
| Temperatura máxima | +80 °C |
| Temperatura mínima | -30 °C |
| Tensión de prueba | 4 kV |
| Tensión nominal | 250 VAC |
| Tipo de terminación | Conexión de Soldadura |
Comprar Neutrik NLT4MX
