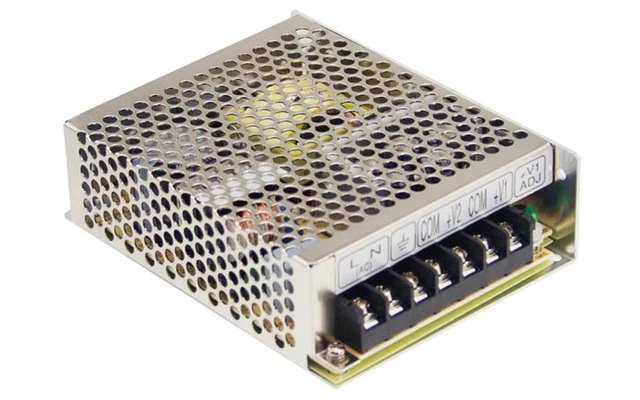

ALIMENTACION 12Vdc 75W CHASIS CERRADO

Referencia: ZX-023330

Descatalogado
¿ Avisame cuando esté dispnible ?

¿Tienes alguna duda sobre el producto?


  • universal AC input / full range
  • cooling: by free air convection
  • LED indicator for power on
  • 100 % carga completa prueba 'burn-in'
  • using 105 °C long-life electrolytic capacitors
  • withstands 300 VAC surge input for 5 seconds
  • high operating temperature up to 70 °C
  • withstands 5G vibration test
  • no load power consumption < 0.5 W
  • high efficiency, long life and high reliability
  • 3 years warranty
  • protection against: short circuit / overload / overvoltage

    • Especificaciones

  • output:
  • tensión DC: 12 V
  • corriente nominal: 6 A
  • current range: 0 - 6 A
  • rated power: 72 W
  • ripple & noise (max.): 120 mVp-p
  • voltage adj. range: 10.8 - 13.2 V
  • voltage tolerance: +/- 1.0 %
  • line regulation: +/- 0.5 %
  • load regulation: +/- 0.5 %
  • setup, rise time:
  • 500 ms, 30 ms / 230 VAC
  • 1200 ms, 30 ms / 115 VAC at full load
  • hold up time (typ.):
  • 60 ms / 230 VAC
  • 14 ms / 115 VAC at full load
  • entrada:
  • rango de tensión:
  • 88 - 264 VAC
  • 125 - 373 VDC
  • withstands 300 VAC surge for 5 s
  • frequency range: 47 - 63 Hz
  • efficiency (typ.): 84.5 %
  • AC current (typ.):
  • 2 A / 115 VAC
  • 1.2 A / 230 VAC
  • inrush current (typ.): cold start 40 A / 230 VAC
  • leakage current: < 2 mA / 240 VAC
  • protection:
  • overload:
  • 110 - 150 % rated output power
  • protection type: hiccup mode, recovers automatically after fault condition is removed
  • overvoltage:
  • 13.8 - 16.2 V
  • protection type: hiccup mode, recovers automatically after fault condition is removed
  • environment:
  • operating temperature: -25 to +70 °C
  • humedad de funcionamiento: 20 - 90 % RH non-condensing
  • storage: -40 to +85 °C, 10 - 95 % RH
  • temperature coefficient: +/- 0.03 %/°C (0 - 50 °C)
  • vibraciones: 10 - 500 Hz, 5G 10 min/1 cycle, period for 60 min each along X, Y, Z axes
  • safety & EMC:
  • safety standards: UL60950-1, TÜV EN60950-1 approved
  • withstand voltage:
  • input to output: 3 kVAC
  • input to ground: 1.5 kVAC
  • output to ground: 0.5 kVAC
  • isolation resistance: input to output, input to ground, output to ground: 100 Mohm / 500 VDC / 25 °C / 70 % RH
  • EMC emission: compliance to EN55022 (CISPR22) Class B; EN61000-3-2,-3
  • EMC immunity: compliance to EN61000-4-2,3,4,5,6,8,11; EN61000-6-2 (EN50082-2), heavy industry level, criteria A
  • otras:
  • MTBF: min. 265,000 h, MIL-HDBK-217F (25 °C)
  • dimensions (L x W x H): 129 x 97 x 38 mm
  • weight: 410 g
