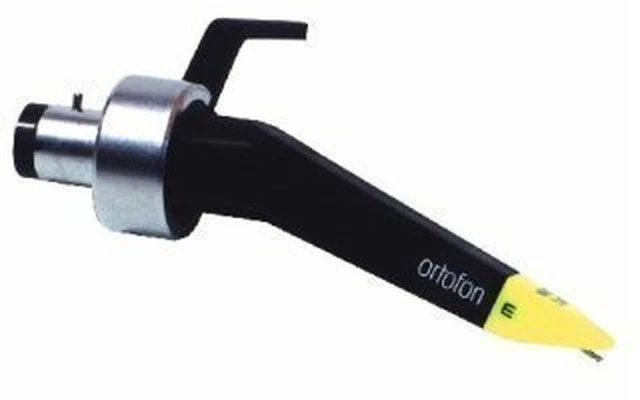

Capsula Ortofon Concorde Nightclub E

• Output voltage at 1000 Hz,5cm/sec. 6 mV
• Channel balance at 1 kHz 1,5 dB
• Channel separation at 1 kHz 23 dB
• Channel separation at 15 kHz 15 dB
• Frequency range 20-22.000 Hz
• Frequency response 20-20.000 Hz ± 2 dB
• FIM distortion at recommended tracking force, DIN 45.542 < 1%
• Tracking ability at 315Hz at recommended tracking force 80 µm
• Compliance, dynamic, lateral 7 µm/mN
• Stylus type Special elliptical
• Stylus tip radius r/R 13/25 µm
• Equivalent stylus tip mass 0,5 mg
• Tracking force range 2,0-5,0 g (20-50 mN)
• Tracking force, recommended 3,0 g (30 mN)
• Tracking angle 20° Internal impedance, DC resistance 750 Ohm
• Internal inductance 450 mH
• Recommended load resistance 47 kOhm
• Recommended load capacitance 200-600 pF
• Cartridge colour, body/stylus Black/Yellow Neon
• Cartridge weight 18,5 g
• Replacement stylus unit Night Club E
