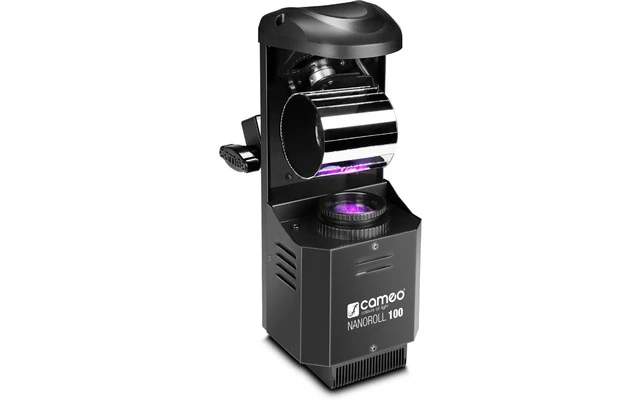

Cameo NanoRoll 100


  • Miniature barrel scanner with gobo wheel
  • Single high-power 10W Cree LED
  • Precision high-speed rotation and pan for vibrant effects
  • Gobo wheel with 7 gobos + open
  • Colour wheel with red, orange, yellow, green, cyan, magenta and blue filters + open
  • Gobo and colour wheels individually controllable
  • Dimming, high-speed strobe, shutter and gobo shake functions
  • 3 DMX modes plus master and slave operation
  • 17 auto run programs and built-in microphone for sound activation
  • 4-button display for easy configuration and manual control
  • Convection cooling

Sporting individually controllable gobo and colour wheels and a long life high-power 10 W LED by Cree, the Cameo Nanoroll 100 generates spectacular moving light effects. This compact barrel scanner offers a selection of 7 detailed gobos and 7 intense colours plus 20 Hz strobe, dimming, shutter and gobo shake functions for additional flexibility. The mirrored barrel moves with smooth precision and speed providing 180° pan and continuous 360° rotation.

The Nanoroll 100 comes in a rugged metal and ABS housing that features convection cooling for silent operation and a 4-button LED display for easy configuration. 3-pin DMX and IEC power inputs and outputs enable easy daisy chaining and power linking. With 3 modes of DMX control, 17 exciting automated programs and a built-in microphone for sound activation, the Cameo Nanoroll 100 is a versatile fixture that is ideal for mobile DJs, bars, clubs and entertainment centres.

Tipo de productoCabezas móviles LED
TipoEscáneres LED
Colores8 canales multicolor
Número de LEDs1
Tipo de LEDs10 W
Número de gobos7 + 1 vacío
Entrada DMXXLR macho de 3 pines
Salida DMXXLR hembra de 3 pines
ProtocolsUSITT DMX 512 protocol
Modo DMX10 canales , 2 canales , 8 canales
Funciones DMXactivación por sonido , Dimmer , estrobo , Movimiento horizontal (PAN) , programa automático , reset , Rueda de gobos , Speed
Movimiento horizontal (PAN)180°
Movimiento vertical (TILT)sin fin
Estrobo de alta velocidad1 - 20 Hz
Modos autónomoactivación por sonido , Automático , Show
Controles- , + , Down , Enter , Modo , Up
IndicaciónLED
Alimentación eléctrica100 - 240 VAC, 50/60 Hz
Consumo25 W
Conexión de alimentación eléctricaentrada y salida IEC
Corriente de salida máx.3 A
Material de la carcasaMetal , Plástico ABS
Color de la cajanegro
Clase de protección IPIP20
RefrigeraciónConvección
Temperatura ambiente máxima0° - 40°
Ancho130 mm
Altura339 mm
Fondo129 mm
Peso2,3 kg
